When a roller shutter strap frays or snaps, the curtain can jam half‑open, leaving your home exposed. It’s a common issue with manual shutters in Australia: UV, age and wear take their toll on the webbing.

The good news: you can replace the strap yourself with a low‑cost kit and a few basic tools. Done carefully, it’s a straightforward DIY that restores smooth operation without waiting for a service call. If you dont have the tools or the skill, call Roller Shutter Repairs Adelaide on 0414611662 today and book your strap repair.

This guide gives you a simple tools list, a buyer’s checklist to choose the right strap size, where to buy in Australia (including Adelaide), step‑by‑step replacement instructions, troubleshooting, expected costs, and when to call a professional.

Tools and parts you’ll need

Before you start your roller shutter strap replacement, line up parts and tools to avoid stoppages. Many manual shutters use 14 mm webbing, and 5 m or 6 m straps are typical depending on height and wall thickness. A spare winder box can save a second trip.

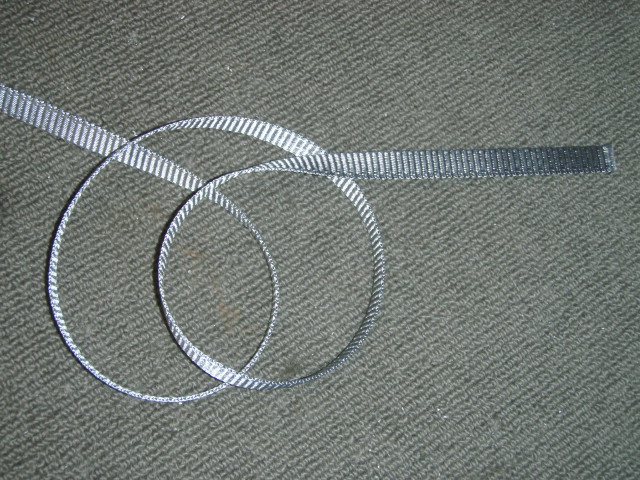

• Replacement strap: 14 mm, 5–6 m
• Strap winder/coiler box: optional spare
• Hand tools: screwdrivers, pliers, utility knife/scissors, tape measure, marker/pencil
• Ladder + safety gear.
• F‑clamp or helper to hold curtain
• Fish tape/draw wire.

Where to buy roller shutter straps in Australia (and Adelaide)

In Australia, the simplest sources are specialist shutter suppliers online and local repairers. Most stock 14 mm webbing in 5 m or 6 m lengths with matching winder boxes, so you can buy a kit or parts only. In Adelaide, you can also book mobile replacement if you’d prefer not to DIY.

• Roller Shutters Blinds Online: 6 m straps listed, plus winder boxes.
• Classic Roller Shutters: 14 mm x 5 m replacement strap with DIY guidance.
• Open n Shut:  straps and winder kits.
• or you can call us on 0414611662 we will help you with all your needs, we can send parts out

Buying checklist: choosing the right strap and parts

To avoid rework during your roller shutter strap replacement, pick the correct strap and companion parts. Manual, non‑spring‑loaded shutters use webbing routed via the pelmet and winder; 14 mm width is common, with 5–6 m lengths suiting most openings. Choose UV/tear‑resistant webbing, replace any rough pulleys or wall bushings, and if your system is brand‑specific (e.g., OZRoll) buy matching components.

• Width compatibility: Confirm at winder slot/pelmet pulley; 14 mm is common.
• Length: Measure pelmet‑to‑winder path; allow extra for the coiler.
• System type: Strap vs cord—buy like‑for‑like.
• Winder box: Weak spring, jam or cracked case? Replace it now.

Step 1. Confirm your shutter type and strap size – 0414611662

Start by identifying your shutter type: manual strap system (non‑spring‑loaded) versus rope/cord or motorised. Measure the webbing width at the winder slot; most use 14 mm. If the strap is missing, measure the slot and pelmet pulley. Confirm length by measuring the path from pelmet to winder and allow for the coil; 5 m or 6 m straps are common. Buy like‑for‑like, especially on branded systems (e.g., OZRoll). This sets up a smooth roller shutter strap replacement.

Step 2. Make it safe and prepare the work area

Before starting your roller shutter strap replacement, make the area safe so the curtain can’t drop while you work. Fully open the shutter, then secure it—use an F‑clamp on the bottom bar or have a helper hold it. Set a stable ladder on level ground and keep kids and pets clear of the work zone.

• PPE: gloves and eye protection for sharp edges.
• Clear access: inside/outside, and protect sills with tape/cardboard.

Step 3. Access the winder box inside

Inside, open the winder box cover with a screwdriver. Hold the strap and let the winder mechanism unwind slowly until slack—don’t let it snap back. Note the drum’s winding direction, then release the strap from the clamp/screw or slot and remove any remnants. If the box is cracked or the spring feels weak, plan to replace it during reassembly.

Step 4. Open the pelmet and remove the old strap

Outside, open the pelmet/hood to continue your roller shutter strap replacement. With the curtain secured, remove screws or clips; if it’s riveted, drill out the pop rivets. Lift the lid, note the strap’s winding direction, then unthread or cut away the damaged webbing. If access is tight, lift out the axle/pulley assembly. Before pulling the strap from the wall, tie on your fish tape/draw wire. Clear the wall bush and inspect pulleys for sharp edges.

Step 5. Attach the new strap to the axle or pulley

Cut the new webbing square. Secure one end to the axle or pulley where the old one fixed: feed through the slot and tie a firm knot, or clamp under the screw. Pull the fixing tight and seat it. Wind the strap in the original direction, flat and centred with no twists. Add 2–3 pre-wraps so it bites immediately during your roller shutter strap replacement.

Step 6. Feed the strap through the wall and guide

From the pelmet, tape the strap end to your fish tape and pull gently inside while you guide it through the wall cavity. Keep the webbing flat and untwisted. Feed it through the wall bush/exit guide—replace cracked or sharp inserts. Pull a tail inside and keep light tension at the pelmet so the wraps stay seated.

Step 7. Connect the strap to the winder and set tension

Thread the strap into the winder in the direction noted and secure under the clamp screw or tie‑off to continue your roller shutter strap replacement. Holding the drum, wind it in the raise direction while guiding the webbing onto the spool flat. Take up slack until it retracts with steady tension. Test a short pull; adjust if it feels slack or snaps back. Keep the path straight. Don’t cut the tail yet—confirm full travel in Step 8.

Step 8. Reassemble, test and fine-tune

Refit the axle/pulley (if removed), close the pelmet and secure cover. Keep the curtain supported, then cycle shutter fully, ensuring the strap runs flat and the curtain rolls evenly. If it stops short or snaps back, add or remove a turn at the winder and retest. When travel is smooth, trim excess strap, refit the winder cover, remove the clamp and full‑cycle test to finish the roller shutter strap replacement.

Troubleshooting common issues after replacement

You’ve finished the roller shutter strap replacement but something still feels off. Don’t rip it apart yet—most post‑install niggles are simple alignment or tension issues. Start with these quick checks to restore smooth operation and save yourself another trip up the ladder.

• Won’t rewind: add a turn; replace weak winder.
• Strap twists or frays at slot: straighten; replace bush; smooth pulleys.
• Limited travel: add/remove a pre‑wrap; avoid drum overfill.
• Rough/uneven: reseat curtain in guides; confirm springs, axle seated.
• Slips at axle: refix knot/clamp; wind correct direction.
• Squeaks: clean; lightly lube axle/pulley—never the strap.

How much does a strap replacement cost in Australia?

In Australia, roller shutter strap replacement is inexpensive: straps typically cost about $13.50 for a 6 m strap (Roller Shutters Australia) to $22 for a 5 m strap (Nu Style). Some sellers offer 14 mm straps in standard 5–6 m lengths or in multiples. If the winder box is worn, factor it in. Professional jobs add labour and travel that vary by suburb, access and condition—ask for a fixed quote.

Optional upgrades while you’re at it

While you’ve got the pelmet open, bank some longevity upgrades. Replace a tired winder box (weak spring = poor retraction). Renew the wall exit guide and pelmet pulleys to stop edge fray. Check or replace T‑springs/security springs. If the strap keeps failing, consider a motor conversion—Australian‑made kits are widely available and our team can convert your manual shutter.

Maintenance tips to extend strap life

Straps wear fastest at the wall exit and pulleys. A few simple habits and a seasonal check keep the webbing running flat, prevent fray points and preserve smooth retraction—so you go longer between roller shutter strap replacements and keep manual shutters feeling new.

• Regular inspection: check for fray; replace cracked exit guide.
• Keep it clean: vacuum pelmet/winder; clear grit.
• Lube moving parts: light lube on axle/pulleys yearly; never on strap.
• Gentle operation: pull straight; don’t yank or let it snap.

When to call a professional – 0414611662

Call a professional if your roller shutter strap replacement exposes deeper issues or safety risks. A tech can realign the axle, replace damaged pulleys and set tension correctly without risking the curtain or your cladding.

• Two‑storey access or unstable ladder.
• Riveted pelmet or failed winder.
• Misaligned springs, bent guides, jammed curtain.

Safety reminders you shouldn’t skip

Strap jobs look simple, but most mishaps come from slips, snap‑backs and unsecured curtains. Treat the shutter like a loaded spring system and work methodically. These rules keep fingers, glass and cladding safe while you swap the webbing.

• Secure the curtain: clamp/helper; not friction.
• Control the winder: let the drum unwind slowly—no free spins.
• Work at height safely: stable ladder; no overreach; avoid wind.
• Wear PPE: gloves/eye protection; metal edges are sharp.
• Support components: hold axle/pulley; keep kids and pets clear.

Conclusion

A broken strap doesn’t need to sideline your shutter. With the right 14 mm webbing in a 5–6 m length, basic tools and a careful sequence—secure, open winder and pelmet, attach, feed, tension, test—you can restore smooth, safe operation and prevent repeat failures using the checklist and tips above.

Prefer a professional finish, tricky access, or ready to go electric? Book a fast visit with Adelaide locals who service all suburbs, use quality parts and charge no call‑out fees. Get help now from Roller Shutter Repairs Adelaide.
